OPU

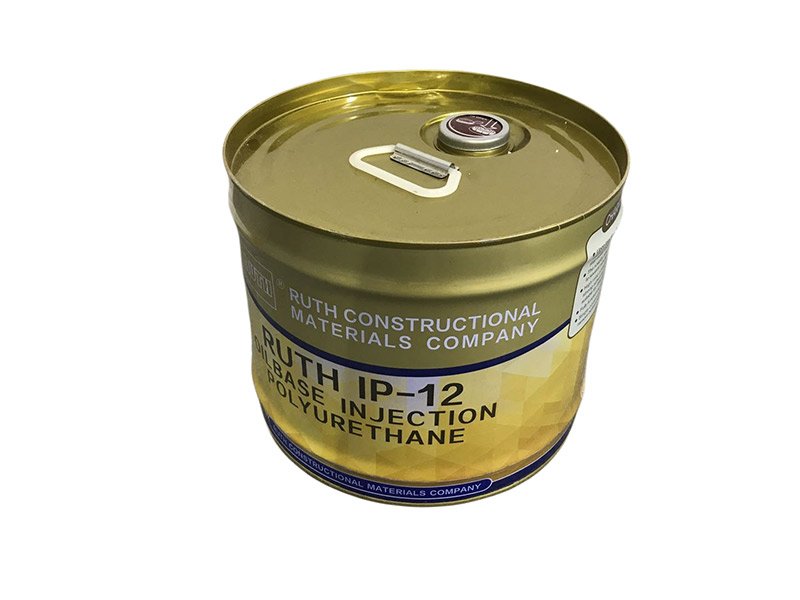

RUTH OPU IP-12 is is Single component, Hydrophobic polyurethane foam injection resin with low viscosity; when it reacts with water forming a closed cell and rigid hydrophobic seal, stopping water by expanding the polyurethane then extrude the water. With High foaming rate, high Strength and with no Shrink

ITEM	STANDARD INDEX	TEST RESULT
Density (g/cm3 25℃±0.5℃)	≥1.00	1.21
Viscosity (Mpa.S 25℃±0.5℃)	≤1.0 ×103	575
Curing Time / S	≤800	366
Foaming Capability / %	≥1000	3068
Non-volatile Content/ %	≥80.0	91.2
Compressive Strength, MPa	≥ 15	29

Advantage

• Good hydrophobic, will react immediately once contact with water, subject to sand, gravel and soil and formed hard consolidated body. Thus to repair the crack and form permanent waterproofing sealing;

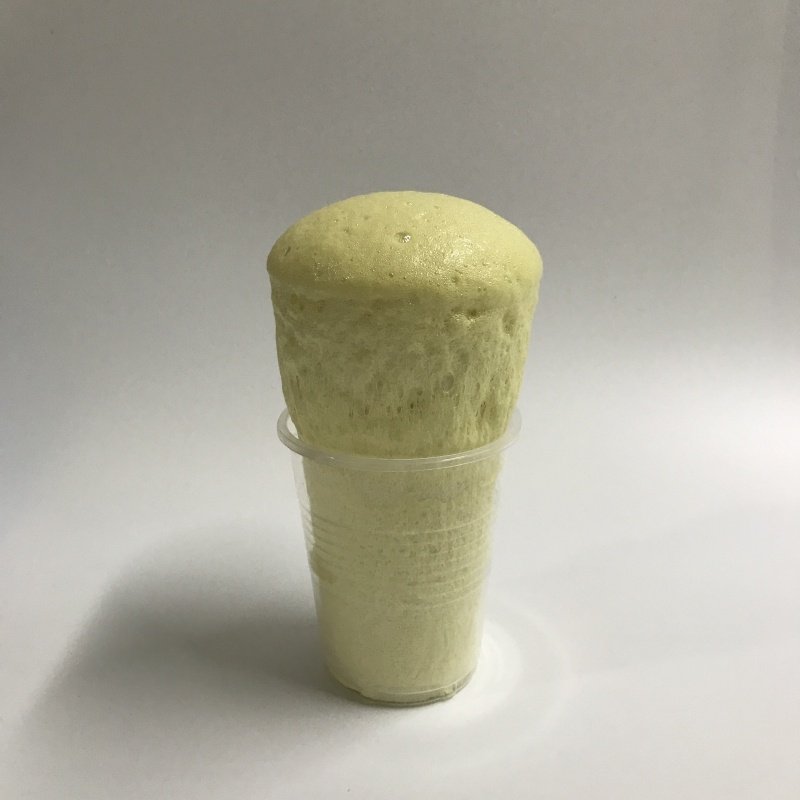

• High Foaming rate (up to 30times),good adhesion to substrate, and after reaction the foam is with high strength;
• Easy to injection, even can make injection under low temperature;
• Pre- Catalysed and Single Component, thus easy operation and easy clean
• For Subway and Coal mining emergency use, safe type OPU can be customized.

Construction Tips

Oil-based polyurethane (OPU,IP-12) can be used in places where there is sometimes water and sometimes no water, such as floors, bridges, cracks, and places with small leaks. When it reacts, it expands dozens of times, and it is in very close contact with the building and will not fall off, can permanent water stop.

Oil-based polyurethane can also be used for roof waterproofing. It can only be done in the rainy season. You don’t know where the leak is at ordinary times. When the rainy season comes, you can plug the leaks wherever they are. After plugging, it’s done. Oil-based polyurethane is very stable after reaction

Application Filed

It can stop the water leaking in the building very fast, widely used in Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack、Construction Joint, Shrinkage Crack, Basement hairline crack etc

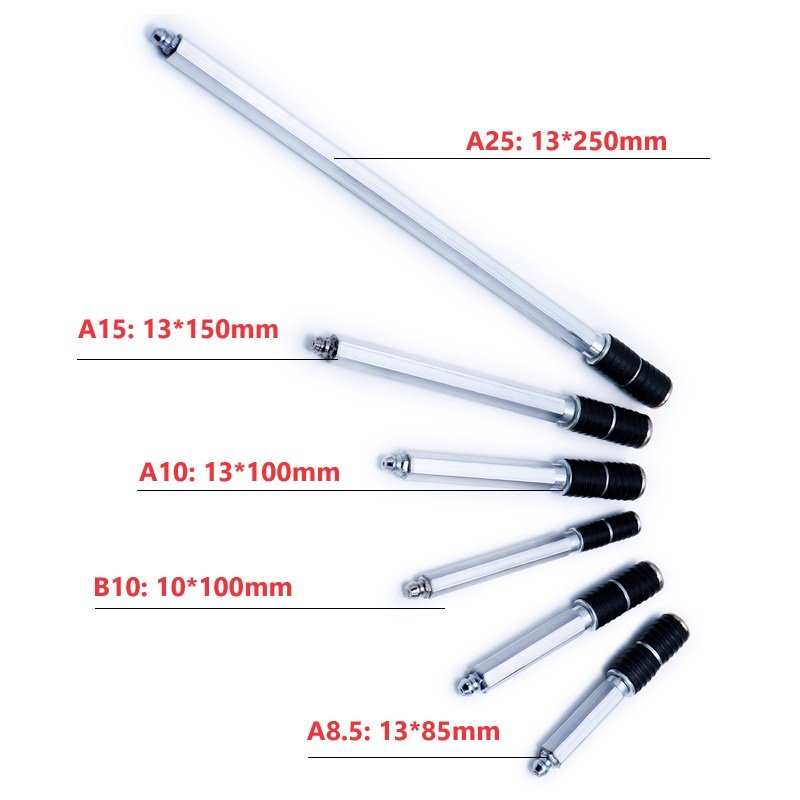

RUTH INJECTION PACKER
